参数大小
产品参数

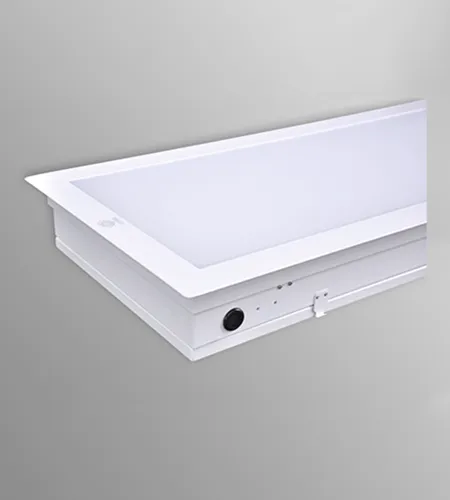

| YJ4A 嵌入式法兰式 LED 洁净室照明灯 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 产品型号 | 产品尺寸/mm | 开口尺寸/mm | 功率/W | 光通量/LM | 光效/W | 色温/K | 防护等级 | 光源类型及颜色 |
| YJ4A01-Z0 | 315*315*107 | 285*285 | 15W | 1650 | 110 | 4500K | IP54 | 单色 ( 自然) |
| YJ4A02-Z0 | 635*315*107 | 605*285 | 25W | 2750 | ||||
| YJ4A03A-Z0 | 1195*315*107 | 1165*285 | 40W | 4400 | ||||
| YJ4A03B-Z0 | 1195*315*107 | 1165*285 | 60W | 6600 | ||||
| YJ4A04A-Z0 | 572*572*107 | 541*541 | 40W | 4400 | ||||
| YJ4A04B-Z0 | 572*572*107 | 541*541 | 60W | 6600 | ||||
| YJ4A04C-Z0 | 572*572*107 | 541*541 | 80W | 8800 | ||||
| YJ4A04D-Z0 | 692*692*107 | 662*662 | 100W | 11000 | ||||
| YJ4A04E-Z0 | 692*692*107 | 662*662 | 150W | 16500 | ||||
| YJ4A05-Z0 | 1195*315*107 | 1165*285 | 80W | 8800 | ||||
| YJ4A06A-Z0 | 1195*375*107 | 1165*345 | 100W | 11000 | ||||
| YJ4A06B-Z0 | 1195*375*107 | 1165*345 | 150W | 16500 | ||||
| YJ4A01-W0 | 315*315*107 | 285*285 | 15W | 1650 | 110 | 6500K | IP54 | 单色 (白光) |
| YJ4A02-W0 | 635*315*107 | 605*285 | 25W | 2750 | ||||
| YJ4A03A-W0 | 1195*315*107 | 1165*285 | 40W | 4400 | ||||
| YJ4A03B-W0 | 1195*315*107 | 1165*285 | 60W | 6600 | ||||
| YJ4A04A-W0 | 572*572*107 | 541*541 | 40W | 4400 | ||||
| YJ4A04B-W0 | 572*572*107 | 541*541 | 60W | 6600 | ||||
| YJ4A04C-W0 | 572*572*107 | 541*541 | 80W | 8800 | ||||
| YJ4A04D-W0 | 692*692*107 | 662*662 | 100W | 11000 | ||||
| YJ4A04E-W0 | 692*692*107 | 662*662 | 150W | 16500 | ||||
| YJ4A05-W0 | 1195*315*107 | 1165*285 | 80W | 8800 | ||||
| YJ4A06A-W0 | 1195*375*107 | 1165*345 | 100W | 11000 | ||||
| YJ4A06B-W0 | 1195*375*107 | 1165*345 | 150W | 16500 | ||||
